An Entirely NEW Walking Experience.
QUATTRO MPK, Kinterra Ankle, Foot Shell, Tube Clamp, and Pylon

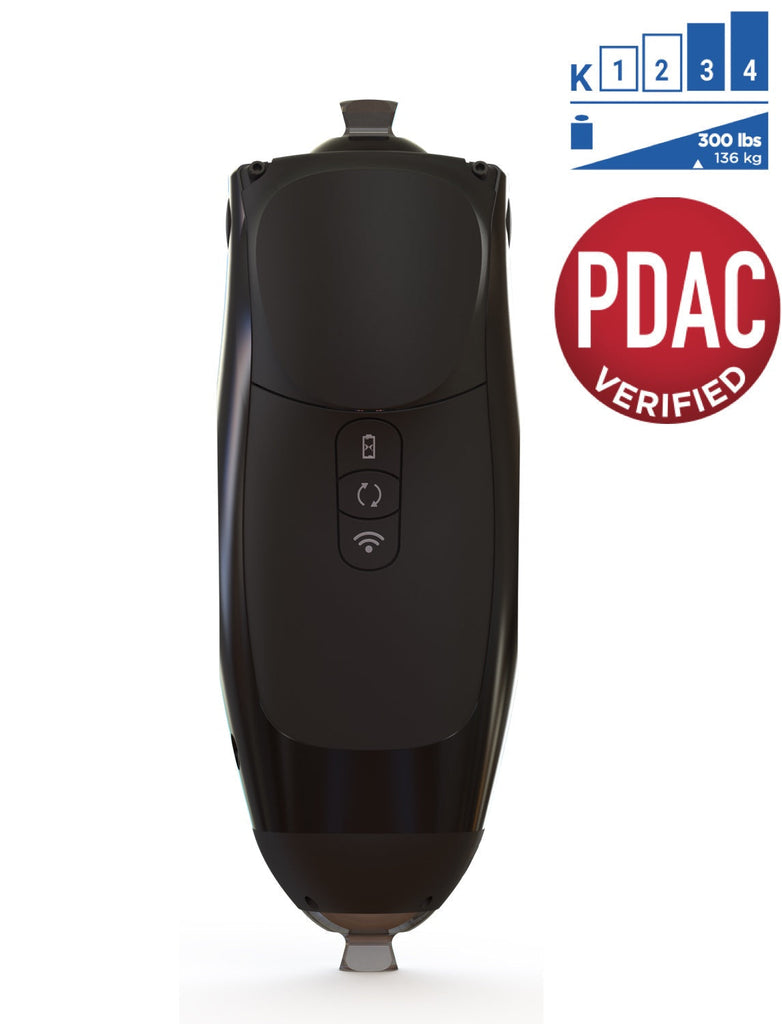

The PROTEOR QUATTRO Microprocessor Knee is designed to be more intuitive, more personalized, and more adaptable. With patented valve technology, advanced customization options, extended battery life, and remote updates, the QUATTRO gives you more of exactly what you need to live the life you want.
- More intuitive for elevated security and dependability
- More personalized for a custom experience
- More adaptable for fewer interruptions
PDAC Verified: L5856, L5828, L5848, L5845, L5850, L5925

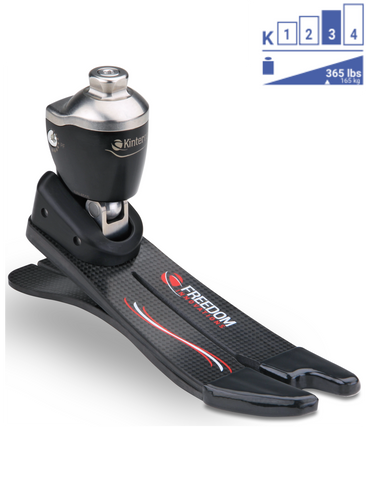

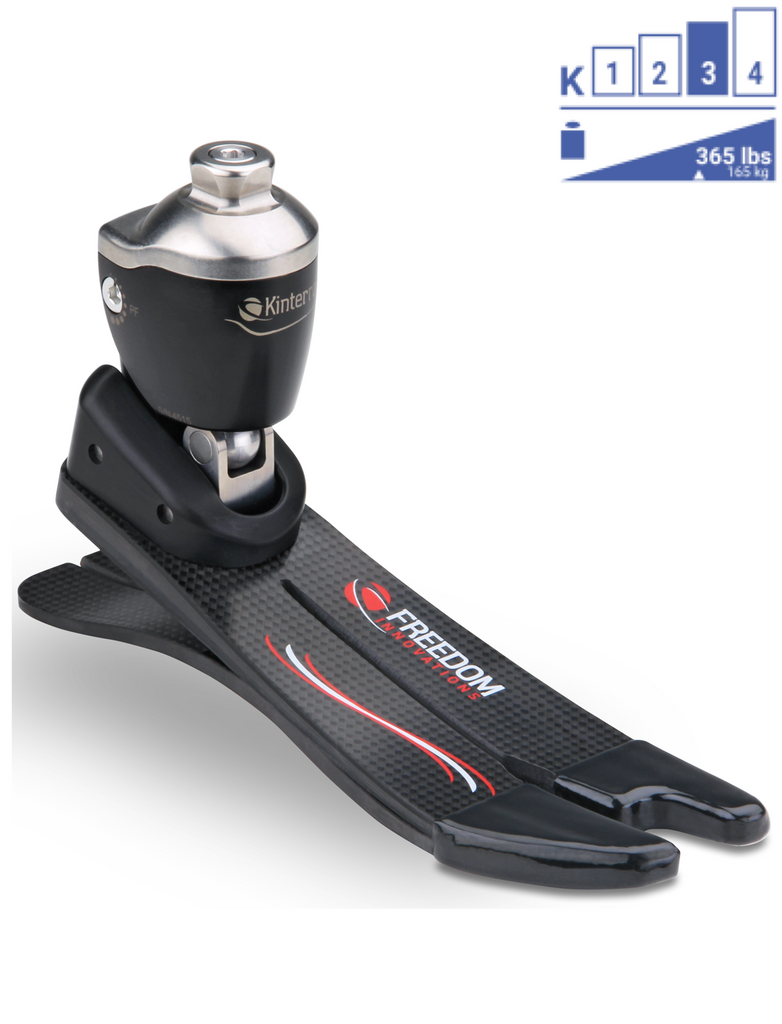

The Freeedom Kinterra™ 2.0 Foot/Ankle System combines hydraulics and carbon fiber technology to provide low to moderate impact ambulators an exceptionally normal walking gait– regardless of terrain or walking speed. This results in rock solid stability and the confidence for users to choose a new path.
Technical Specs
ITEM NO. QNXROM
Quattro | Kinterra | ||||
Weight | 3.65lbs (1655g) |
Weight (26 Cat 4, foot shell, spectra sock) |
824g | ||
Build Height | 8.5" (216mm) |
Build Height*
|
22 - 25cm | 4.70" / 119mm | |
Knee Flexion | 135° | 26 - 28cm | 4.73" / 120mm | ||
Proximal Connector | Pyramid or Threaded Top | 29 - 31cm | 4.88" / 124mm | ||
Max patient weight | 300lbs /136kg | Heel Height | 3/8” / 10mm | ||

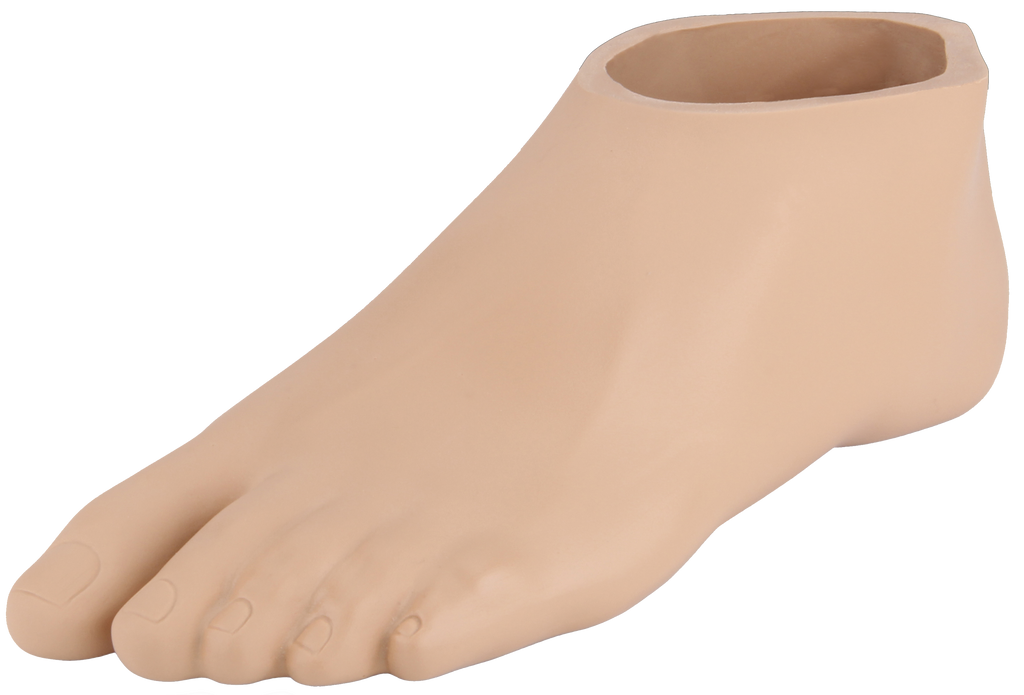

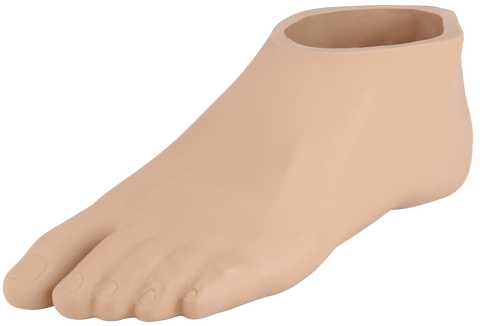

Activity level | K3 / K4 | Foot Shell | Light, Medium, or Dark Sandal Toe available 23-28 |
||
Battery Life | 2-3 days |
*Build height based on size 23cm, 26cm, or 29cm Cat 4 foot module with spectra sock, foot shell and 10mm heel height.
|
|||
Water resistance | IP67 | ||||

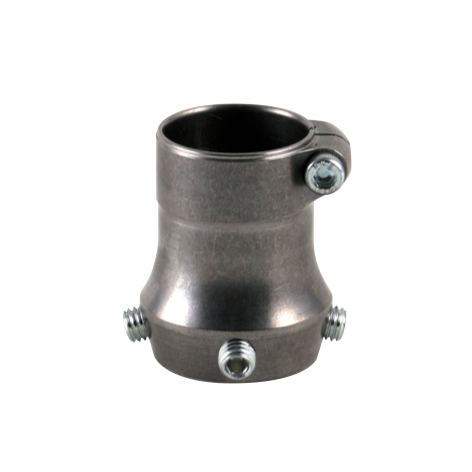

Tube Clamp Adapter Female 4-screw adaptor for tightening on Ø 30 mm tube |

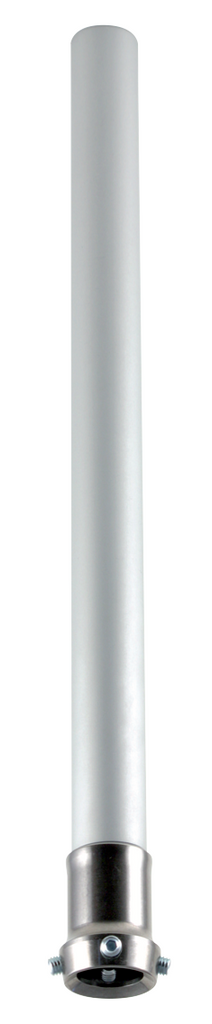

Tube Adapter Ø 30 mm and Titanium Pyramid Receiver |
||||
Max Patient Weight | 220 lbs / 100 kg | Max Patient Weight | 220 lbs / 100 kg | ||
Material | Titanium | Material | Aluminum + Titanium | ||
Weight | 90 g | Weight | 280 g | ||
Total Height | 50 mm | Total Height | 440 mm | ||
Build Height | 16 mm | Build Height | 440 mm |
Module selection according to activity and weight | ||||||||
Weight/ Activity level | 100-115lbs 44-52kg |
116-130lbs 53-59kg |
131-150lbs 60-68kg |
151-170lbs 69-77kg |
171-195lbs 78-88kg |
196-220lb s 89-100kg |
221-255lbs 101-116kg |
256-275lbs 117-125kg |
Low | 1 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Moderate | 1 | 2 | 3 | 4 | 5 | 6 | 7 | - |
NOTE: Increasing category numbers indicate increased keel response.
