Expect More

QUATTRO MPK, Pacifica Foot, Foot Shell, Tube Clamp, and Pylon

The PROTEOR QUATTRO Microprocessor Knee is designed to be more intuitive, more personalized, and more adaptable. With patented valve technology, advanced customization options, extended battery life, and remote updates, the QUATTRO gives you more of exactly what you need to live the life you want.

More intuitive for elevated security and dependability
More personalized for a custom experience
More adaptable for fewer interruptions

PDAC Verified: L5856, L5828, L5848, L5845, L5850, L5925

Pacifica® prosthetic foot is ideal for users with long residual limbs, due to its low profile design. In contrast with competing low profile foot products, which may feel stiff and uncomfortable, Pacifica® users experience flexibility and energy return allowing them to walk farther, faster, longer. The lightweight and durable design requires less energy expenditure so that amputees are comfortable on their feet for longer periods of time. The pyramid lies within the foot shell, simplifying the cosmetic finishing process. A low build height also provides room for additional componentry, such as a rotator or shock absorber which can provide added comfort.

Technical Specs

ITEM NO. QNXFS2 / QNXFS2 _HD

Quattro		Pacifica			Pacifica LP
Weight	3.65lbs (1655g)	Weight (27 Cat 4, module with foot shell)		610g	Weight (27 Cat 4, module with foot shell)		570g
Build Height	8.5" (216mm)	Build Height*	24 - 25cm	2.5′′ / 65mm	Build Height*	22 - 25cm	1.9′′ / 48mm
Knee Flexion	135°		26 - 28cm	2.6′′ / 66mm		26 - 28cm	2.1′′ / 54mm
Proximal Connector	Pyramid or Threaded Top		29 - 31cm	2.7′′ / 70mm		29 - 31cm	2.2′′ / 58mm
Max patient weight	300lbs /136kg	Heel Height	3/8” / 10mm		Heel Height	3/8” / 10mm
Activity level	K3 / K4	Foot Shell	Light, Medium, or Dark Sandal Toe available 24-28		Foot Shell	Light, Medium, or Dark Sandal Toe available 22-28
Battery Life	2-3 days	*Build height based on size 23cm, 26cm, or 29cm Cat 4 foot module with spectra sock, foot shell and 10mm heel height.
Water resistance	IP67
Tube Clamp Adapter (1D40) Female 4-screw adaptor for tightening on Ø 30 mm tube		Tube Adapter Ø 30 mm (1D46) and Titanium Pyramid Receiver
Max Patient Weight	220 lbs / 100 kg	Max Patient Weight	220 lbs / 100 kg
Material	Titanium	Material	Aluminum + Titanium
Weight	90 g	Weight	280 g
Total Height	50 mm	Total Height	440 mm
Build Height	16 mm	Build Height	440 mm

Module selection according to activity and weight
Weight/ Activity level	100-115lbs 44-52kg	116-130lbs 53-59kg	131-150lbs 60-68kg	151-170lbs 69-77kg	171-195lbs 78-88kg	196-220lb s 89-100kg	221-255lbs 101-116kg	256-285lbs 117-130kg	286-325lbs 131-147kg	326-365lbs 148-166kg
Low	1	1	2	3	4	5	6	7	8	9
Moderate	1	2	3	4	5	6	7	8	9	-
High	2	3	4	5	6	7	8	9	-	-

NOTE: Increasing category numbers indicate increased keel response.

Torque: Alignment Set Screw	15 Nm
Torque: Clamp Cap Screw	7Nm

Tube Clamp Adapter on Ø 34mm Tube (1D41-HD) Female 4-screw adapter for tightening on Ø 34 mm tub
Pyramid Adapter	30mm
Max Patient Weight	330 lbs / 150 kg
Material	Aluminum
Weight	120 g
Total Height	55 mm
Build Height	17 mm
Torque: Alignment Set Screw	15Nm
Torque: Clamp Cap Screw	5Nm

Aluminum Ø 34mm Pylon (1G01-HD)
Max Patient Weight	330 lbs / 150 kg
Material	Aluminum
Weight	235 g
Total Height	420 mm

Documents

Product Sheet QUATTRO

Instructions For Use QUATTRO

PDAC Verification Letter QUATTRO

Letter of Medical Necessity QUATTRO

Prosthesis Setup Guide QUATTRO

Patient Setup Guide QUATTRO

Build Height Guide QUATTRO

Product Sheet Pacifica® and Pacifica® LP

Instructions For Use Pacifica® and Pacifica® LP

Ordering Guide - Modules and Foot Shells

QUATTRO Total Solutions

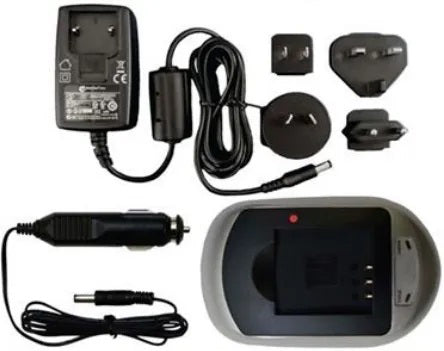

Plié® 3 Battery Charger

Item Number: KS1-00-CHRG1-00
