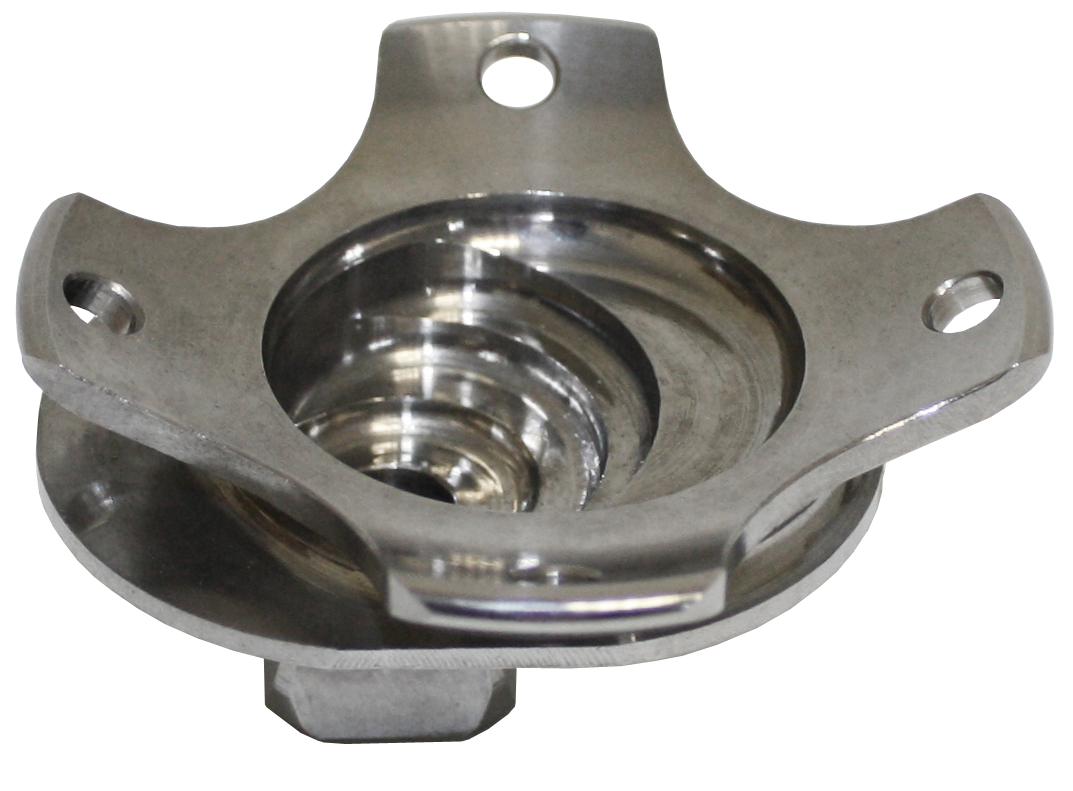

Stainless Steel Trans-tibial Offset Lamination Connector
Trans-tibial lamination connector with an offset male pyramid. This allows to limit material excess in case of a socket offset :
- in case of an important flexum,
- in case of an offset on the inner side, in order to increase stability
Documents & Resources
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Total Height | Build Height |
|---|---|---|---|---|---|---|
| 1K204 | 4-ear Offset Lamination Anchor HD Transtibial adapter with 9mm axial offset of the pyramid. | 330 lbs / 150 kg | Stainless steel | 113 g | 32 mm | 11 mm |
