EVAQ8 elevated vacuum technology optimally secures the prosthesis to the residual limb and helps manage residual limb volume changes, leading to a more stable socket fit. Appropriate for patients with low, moderate, or high impact activity levels.
Meeting the need for innovation, versatility, and pure satisfaction, the popular EVAQ8 vacuum system collection by PROTEOR is expanding beyond our legacy RUSH feet to carbon fiber, EnduraCore feet, and the newest addition — FusionFlex.
-
Optimal Design – No additional build height and minimal added weight
-
High Durability – Rubber vacuum chamber designed to last – even with continual use of time
-
Responds Automatically – Pulls vacuum as needed with every step
LOW PROFILE IN HIGH GEAR

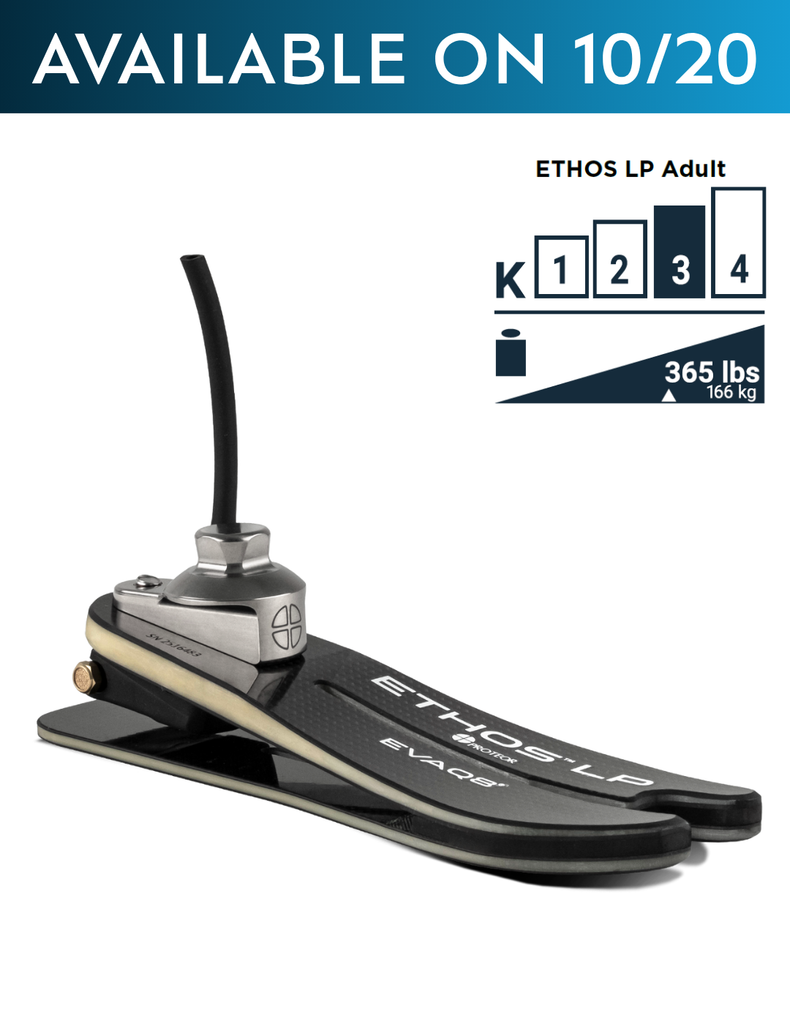

For amputees with longer residual limbs, ETHOS™ LP is the ultimate low-profile solution that’s integrated with our unique FusionFlex composite technology — a unique layup engineered with a fiberglass core for increased durability and outer layers of carbon fiber for increased energy return.
Using an ultra-durable, flexible proprietary rubber blend, the multiaxial rotation plate between the keel and heel provides independent internal and external rotation to reduce rotational forces on the residual limb in the socket and double the inversion and eversion of a traditional low profile carbon fiber foot.
- Enhanced durability, high energy return, and lightweight
- Increased inversion and eversion
- Heel bumper: Provides vertical shock absorption at heel strike
- Split keel and heel: Adapts to uneven terrain, slopes, and objects on the ground
- Half rocker sole plate: Provides constant contact with the ground for a smooth rollover and superior ground compliance
- No bolts: Eliminates dead spots
- Waterproof: Resistant to fresh, sea, and chlorinated water
- Available in various sizes and options: Adult = 22-30cm (Sandal Toe only); Pediatrics = 19-21cm (Regular Toe only); EVAQ8 (Elevated Vacuum) = 26-30cm (Sandal Toe only)
Tech Specs
*Based on sizes 20 cat 2P, 23, 26, 29, cat. 4, with foot shell, spectra sock and 10 mm heel height
Documents
Foot Shells
New Kinterra, Kinnex and ETHOS LP Sandal Toe Foot Shell, No CAP
L-Codes
-
L5981, L5986, L5781
