4-Axis Knee

The 1M102 offers increased safety in stance phase with it’s alignment and axis geometry.

This knee is particularly appropriate for rehabilitation thanks to the possibility of adjusting stability in two different positions reached by modifying the rear linkage geometry.

Safety in stance phase: alignment and axis geometry.
The 4 axes and linkage geometry provides a shortening of the leg segment during swing phase.
Socket rotation adjustment: ± 15°.
Friction adjustment.
Extension assist adjustment.
Optional lock available.

Tech Spec

Item N°	Max Patient's Weight	Weight	TH	BH	H	Material	Lock	Flexion	Distal Adapter
1M102	220 lbs/ 100 kg	565 g	184 mm	113 mm	12 mm	Aluminium	No	160°	Tube Ø 30 mm
1M102V	220 lbs/ 100 kg	575 g	184 mm	113 mm	12 mm	Aluminium	Yes	160°	Tube Ø 30 mm
1M102-HD	275 lbs/ 125 kg	500 g	184 mm	113 mm	12 mm	Aluminium	No	160°	Tube Ø 34 mm
1M102V-HD	275 lbs/ 125 kg	500 g	184 mm	113 mm	12 mm	Aluminium	Yes	160°	Tube Ø 34 mm

Documents

Instructions for Use

L-Codes

1M102 Series L Codes L5611, L5850, L5925

Order One of the Following to Complete Your Order

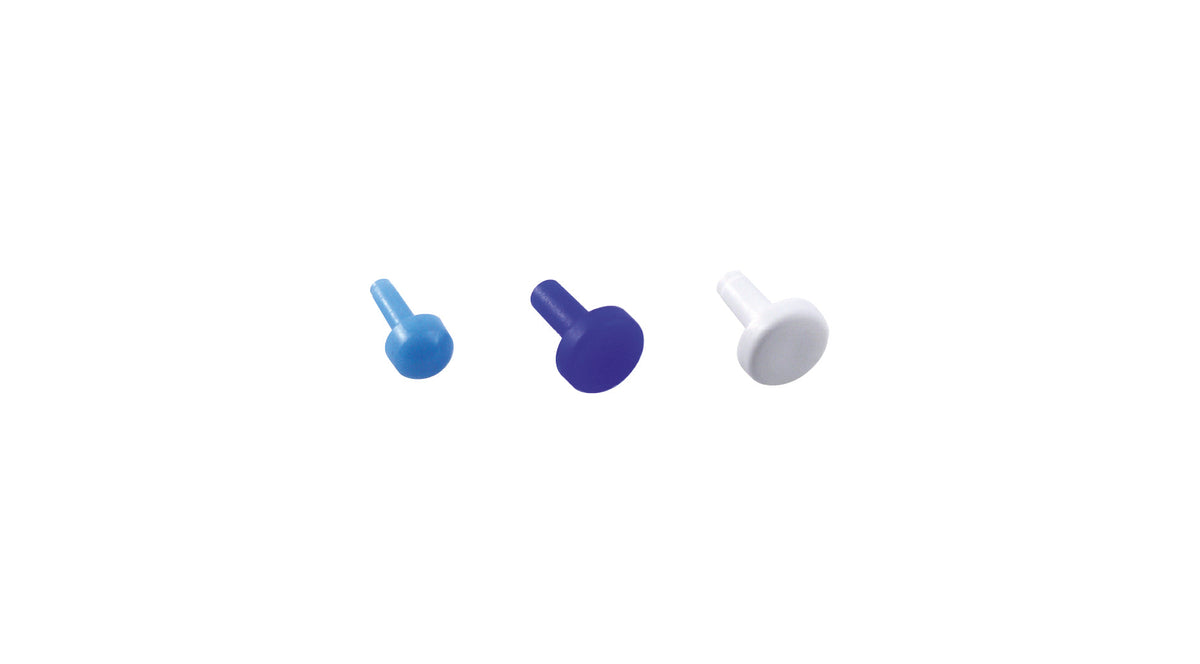

Bumper for Aflex Kit

Item Number: 2C13004#10
