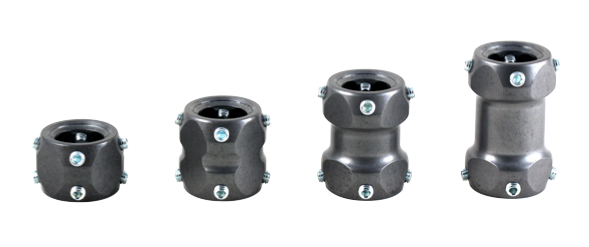

Double Pyramid Receiver
Heavy-duty aluminum double pyramid receiver for tight spaces where a tube can't be used, available in 32, 45, 60 and 75 mm heights and rated for patients up to 330 lbs / 150 kg.
Documents & Resources
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Total Height | Build Height |
|---|---|---|---|---|---|---|
| 1K207-032-HD | Double Pyramid Receiver. Avoid using a tube in tight spaces | 330 lbs / 150 kg | Aluminum | 100g | 32 mm | |
| 1K207-0450-HD | Double Pyramid Receiver. Avoid using a tube in tight spaces | 330 lbs / 150 kg | Aluminum | 130 g | 45 mm | |
| 1K207-060-HD | Double Pyramid Receiver. Avoid using a tube in tight spaces | 330 lbs / 150 kg | Aluminum | 145 g | 60 mm | |
| 1K207-075-HD | Double Pyramid Receiver. Avoid using a tube in tight spaces | 330 lbs / 150 kg | Aluminum | 160 g | 75 mm |
