ETHOS™ LP EVAQ8®
L-Codes
L5981
L5986
L5781

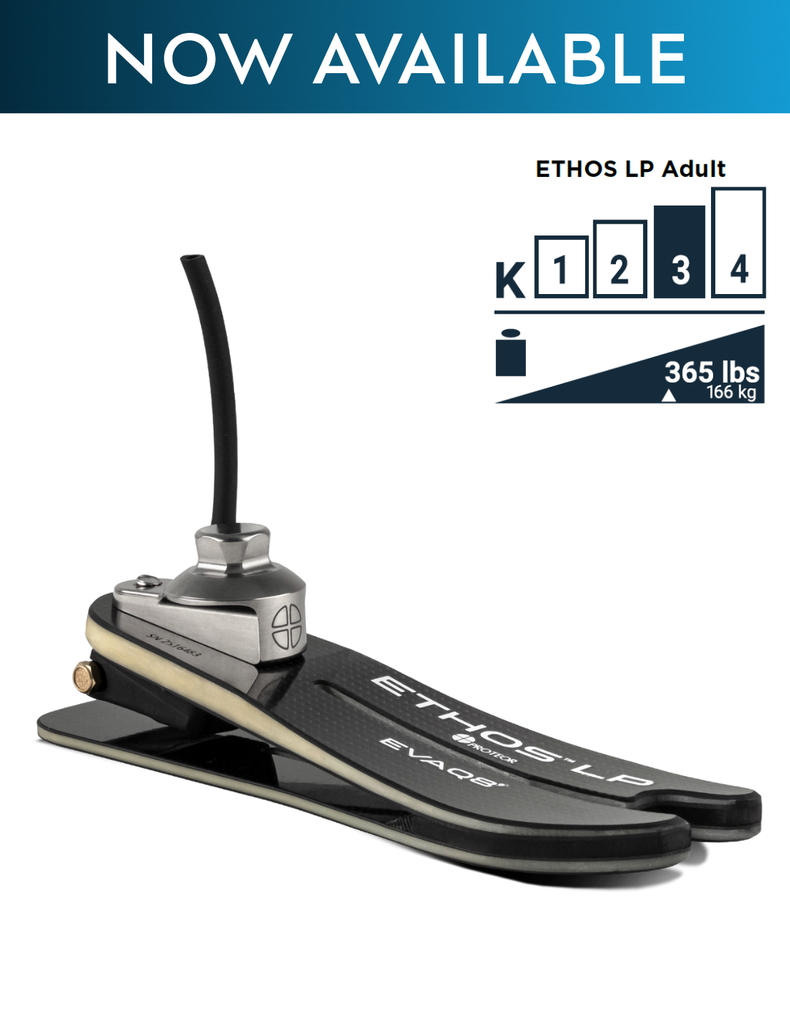

In its EVAQ8 version, ETHOS™ LP EVAQ8, integrates the lightest vacuum technology, in a very low build height, ultra-lightweight and durable architecture designed to enhance socket fit on any type of terrain. This vacuum technology optimally secures the prosthesis to the residual limb, by adapting to residual limb volume changes, maintaining a high level of comfort and dynamism throughout the day.
- Excellent socket fit in a minimal design, with only 40g addition and no build height modification
- Automatic vacuum response at each step
- High Durability – Rubber vacuum chamber designed to last – even with continual use of time
Target User
ETHOS™ LP is for moderate activity (K3) users with long residual limbs who walk everyday on different types of terrain and who prioritize lightness, adaptability, stability and comfort.
- Excellent terrain adaptation - with 16.5° of inversion/eversion
- Ultra-lightweight (485g for a size 26cm in Cat 4, with spectra sock and foot shell)
- Smooth change of directions - ±8° independent internal and external rotation
- Excellent socket fit in a minimal design (EVAQ8)
- Automatic vacuum response at each step (EVAQ8)
Product Information
- Recommended L-Code(s): L5981, L5986 (+L5781 in EVAQ8 version)
- Build height: 2.83" / 58mm (size 26, with foot shell, spectra sock and 10mm heel height)
- Maximum user weight: 365lbs / 166kg
- Product weight (EVAQ8): 1.15lbs / 525g (size 26 with foot shell & spectra sock)
- Sizes: EVAQ8 version 26–30cm (Sandal toe only)
- Heel height: 3/8" / 10mm
- Attachment type: Male pyramid
- Foot shell skin tones: Jet Black, Dark, Medium, Light
- Warranty: 36 months (shell 6 months)
- 60 day return
Technical Specifications
Item N°.
ETHOS LP for Adults
ETHOS LP for Pediatrics
Weight
485g (26cm Cat 4, module with foot shell)
275g (20cm Cat 2P, module with foot shell)
Build Height* - 22 – 25cm = 2.26” / 57mm
19 – 21cm = 1.66” / 42mm
Build Height* - 26 – 28cm = 2.3″ / 58mm
19 – 21cm = 1.66” / 42mm
Build Height* - 29 – 30cm = 2.48” / 63mm
19 – 21cm = 1.66” / 42mm
Heel Height
3/8” / 10mm
*Based on sizes 20 cat 2P, 23, 26, 29, cat. 4, with foot shell, spectra sock and 10 mm heel height. Weight: 100–365 lbs / 44–166 kg. IMPACT LEVEL: Low 1–9, Moderate 1–9,High 2–9.
Selection Guide
Module Selection According to Activity and Weight
| WEIGHT | 100-115 lbs 44-52 kg | 116-130 lbs 53-59 kg | 131-150 lbs 60-68 kg | 151-170 lbs 69-77 kg | 171-195 lbs 78-88 kg | 196-220 lbs 89-100 kg | 221-255 lbs 101-116 kg | 256-285 lbs 117-130 kg | 286-325 lbs 131-147 kg | 326-365 lbs 148-166 kg |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | 1 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Moderate | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | - |
| High | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | - | - |
Scroll horizontally to view all weight ranges.
