Flexible AFLEX
Flexible AFLEX
Recommended for night AFO, their flexibility ensures comfort for even very spastic patients and possible motions of the ankle allow a better compliance of the orthosis. (3 sizes available (pediatric, child, adult)
A complete line of flexure joints, let Aflex help fabricate your all your thermoformed orthoses.
- Indications: to treat pathologies of neurologic, muscular or traumatic origin that affect foot levator muscles.
- Easy implementation thanks to their flexibility allowing self-alignment.
- Designed to last, Aflex has been tested in all conditions and guaranteed meet your needs.

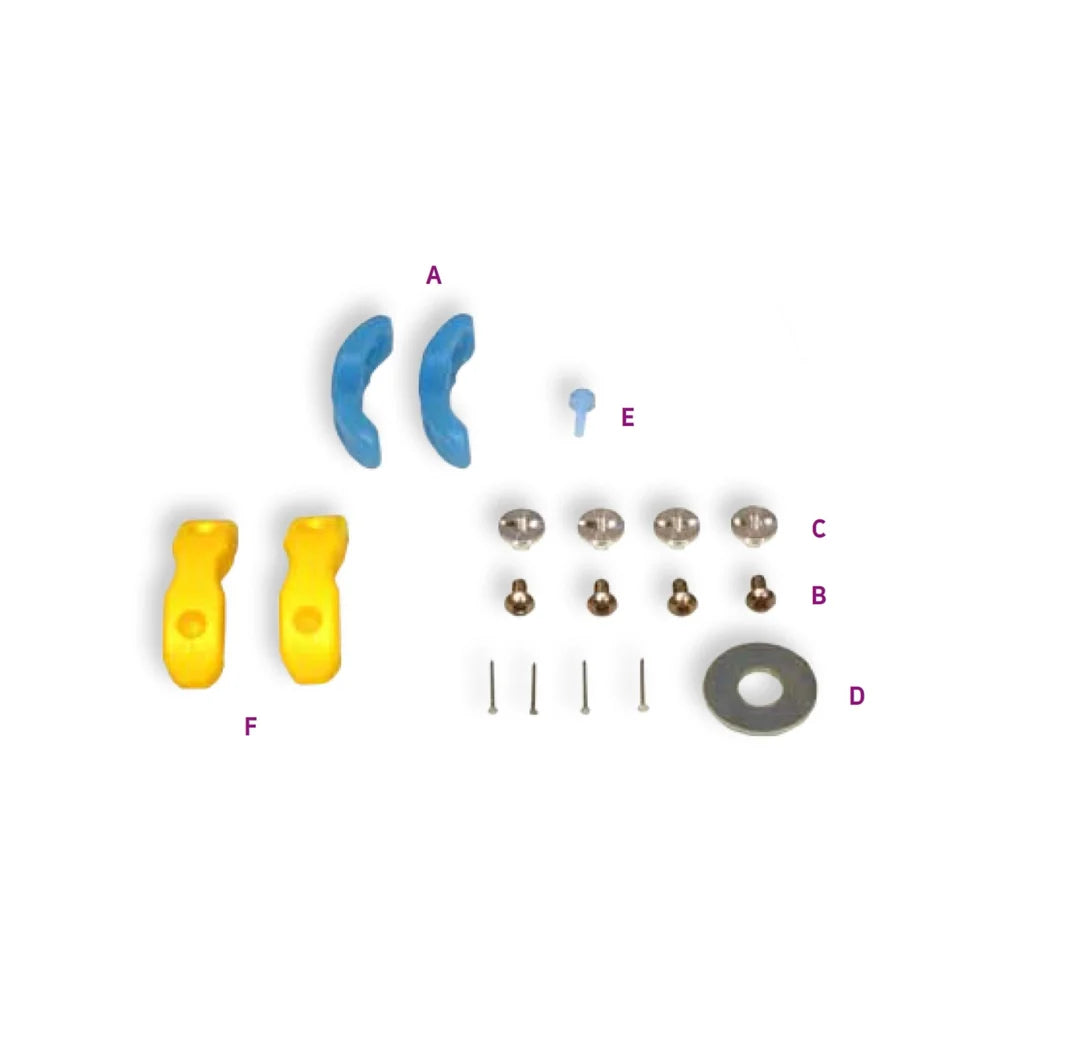

Kit including
- 2 joints (A)
- 4 stainless steel screws (B)
- 4 split nuts (C)
- 1 nut retaining tool for tightening (D)
- 1 posterior stop (E)
- 2 molding dummiers with 4 nails (F)
- Thermoforming templates
Documents & Resources

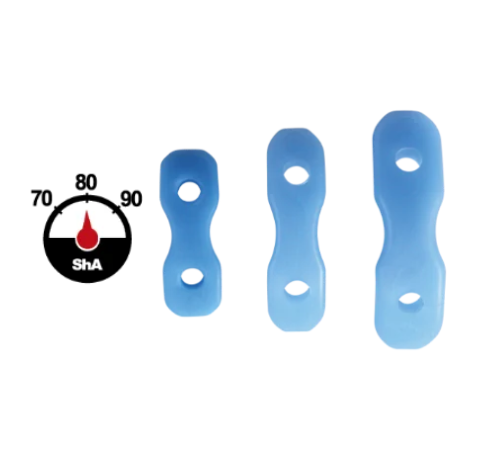

Technical Specifications
| Designation | Pediatric | Child | Adult |
|---|---|---|---|
| L x W | 34 x 11,6 mm / 1.34 x 0.46″ | 42 x 11,7 mm / 1.65 x 0.46″ | 49 x 14 mm / 1.93 x 0.55″ |
| Packaging | Pair | Pair | Pair |
| Thickness * | 5 mm / 0.2″ | 6,5 mm / 0.26″ | 8 mm / 0.31″ |
| Item N°. kit | 2C131-P | 2C131 | 2C130 |
*Thickness at the center
