Time Tested Stability and Dynamics

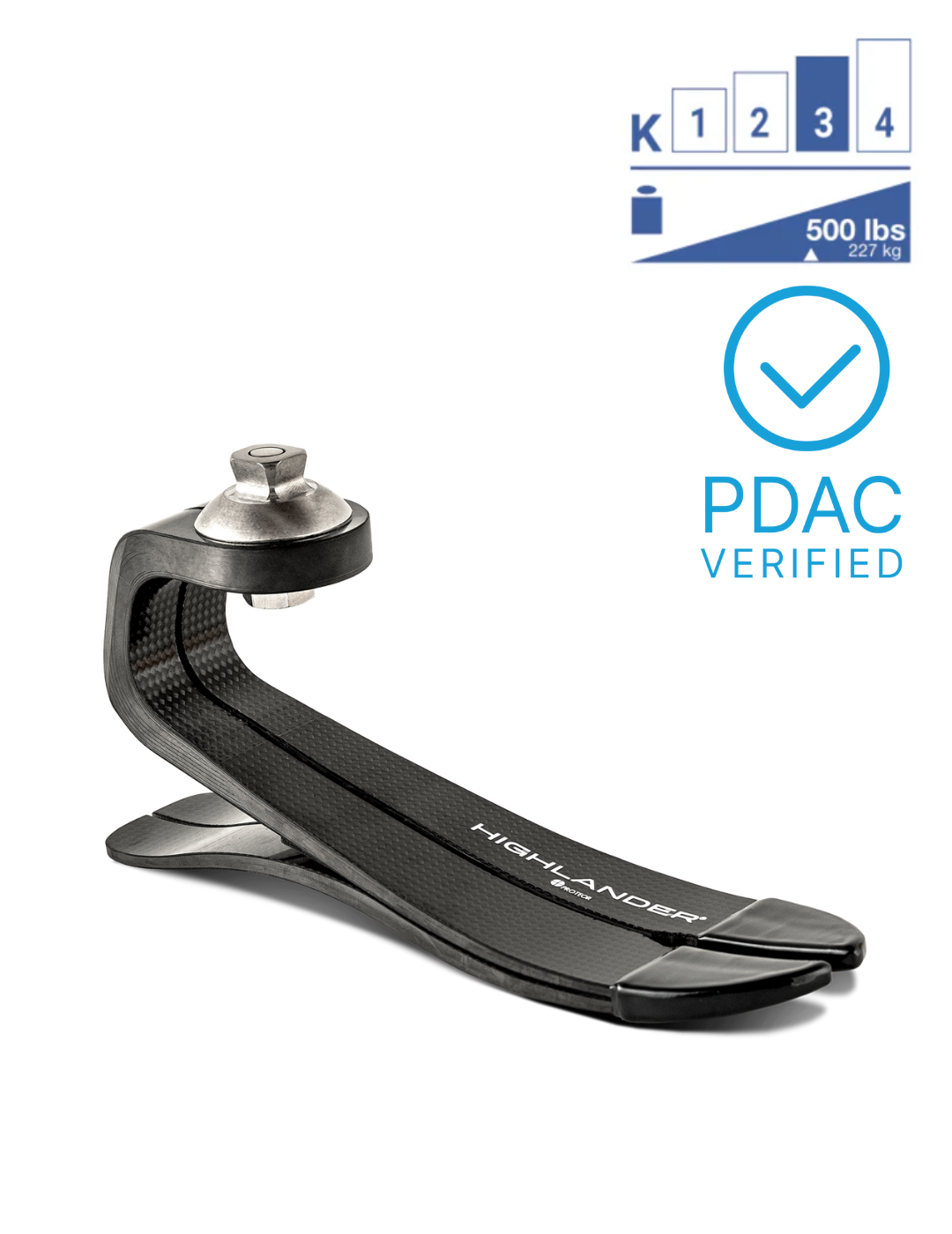

The Highlander® prosthetic foot provides active patients with long residual limbs an efficient and smooth gait, with excellent energy return. A split toe provides excellent inversion-eversion, allowing users to walk and run with confidence on uneven terrain. The Highlander® MAX can be used with exoskeletal systems or users weighing up to 500 lbs. As a result, amputees once limited to lower functioning products can now enjoy the benefits provided by a premium energy storage and return device so they can walk farther, faster, longer.
- Water-resistant
- Engineered for active amputees with long residual limbs
- Split toe provides excellent inversion-eversion
- Offers ideal blend of stability and action, often preferred by transfemoral amputees
- Can be designed for amputees weighing up to 500 lbs.**
- Rated to 365 lbs.
- 36-month warranty
- Foot Shell sold separately. See Foot Shells Tab.
** Freedom Highlander® MAX Custom order only
Tech Specs
|
Item N°. |
FS3-00 |
FS3-H5 |
|
|
Weight (27 Cat 4, module with foot shell) |
590g |
||
|
Build Height* |
22 - 25cm |
3.875" / 98mm |
|
|
26 - 28cm |
4.25" / 108mm |
||
|
29 - 31cm |
4.75" / 121mm |
||
|
Heel rise |
3/8" / 10mm |
||
*Build height based on size 27cm Cat 4 foot module with foot shell and 10mm heel height. Sandal-toe available for sizes 22-28cm.
|
Weight/ Activity level |
100-115lbs 44-52kg |
116-130lbs 53-59kg |
131-150lbs 60-68kg |
151-170lbs 69-77kg |
171-195lbs 78-88kg |
196-220lbs 89-100kg |
221-255lbs 101-116kg |
256-285lbs 117-130kg |
286-325lbs 131-147kg |
326-365lbs 148-166kg |
366-420lbs 167-190kg |
421-480lbs 191-218kg |
481-500lbs 219-227kg |
|
Low |
1 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10** |
11** |
12** |
|
Moderate |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10** |
– |
– |
– |
|
High |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10** |
11** |
– |
– |
– |
NOTE: Increasing category numbers indicate increased keel response.
Documents
Foot Shells

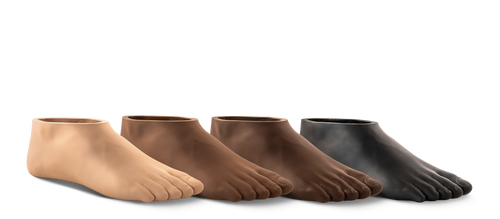

Standard Foot Shell, No CAP, Item Number: FTC-3M-1

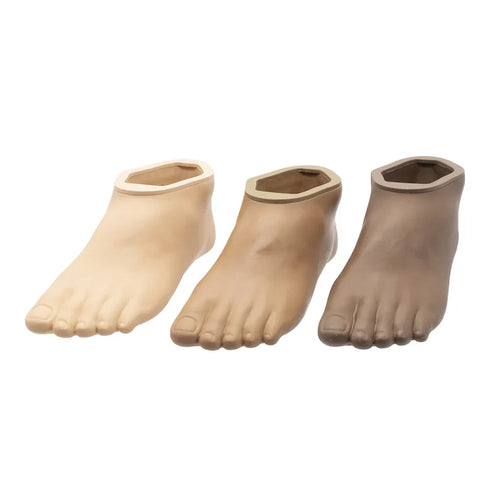

Standard Foot Shell, with CAP, Item Number: FTC-3M-0

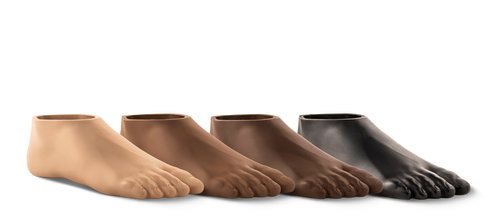

Sandal Toe Foot Shell, No CAP, Item Number: FTC-2M-1
L-Codes
-
L5981
