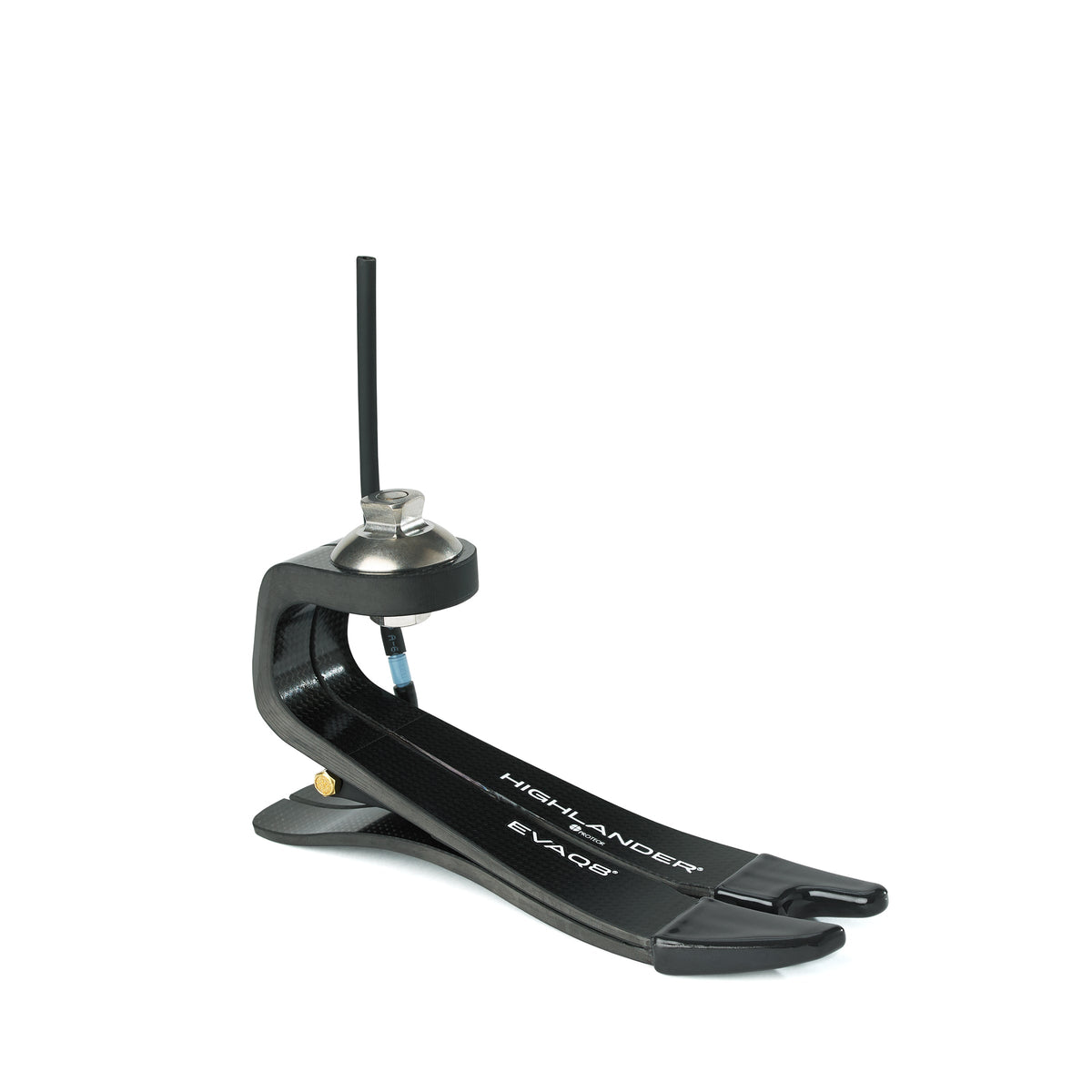

Highlander® EVAQ8

In its EVAQ8 version, the Highlander® EVAQ8, the foot integrates the lightest vacuum technology, in a low build height, ultra-lightweight and durable architecture designed to enhance socket fit on any type of terrain. This vacuum technology optimally secures the prosthesis to the residual limb, by adapting to residual limb volume changes, maintaining a high level of comfort and dynamism throughout the day.

• Excellent socket fit in a minimal design, with only 40g addition and no build height modification
• Automatic vacuum response at each step
• High Durability – Rubber vacuum chamber designed to last – even with continual use of time

Target User

The Highlander® is for moderate to active (K3) users who practice several different activities a day and don’t want to question if their foot is adapted. Going from hiking to walking in the park, Highlander always gives the best sensation.

• Excellent & quick energy return - with 90% efficiency at each step
• Excellent terrain adaptation - with 17° of inversion/eversion
• High agility and flexibility - with 18° of dorsi-plantar flexion
• Heavy duty reliability - with up to 500lbs / 226kg patient weight limit (Highlander Max)
• High stability or prosthetic knee stability - with 13° sagittal stability range
• Good shock absorption
• Excellent socket fit in a minimal design (EVAQ8)
• Automatic vacuum response at each step (EVAQ8)

Product Information

• Recommended L-Code(s): L5981 - PDAC Verified (+L5781 in EVAQ8 version)
• Build height: 4,3" / 108mm (size 26, with foot shell, spectra sock and 10mm heel height)
• Maximum user weight: 365lbs / 166kg (standard Highlander EVAQ8; not Highlander MAX)
• Product weight (EVAQ8): 1,27lbs / 578g (size 26, cat 4, with foot shell & spectra sock)
• Sizes 22–31cm (Sandal toe option available - 22-28)
• Heel height: 3/8" / 10mm
• Attachment type: Male pyramid
• Foot shell skin tones: Jet Black, Dark, Medium, Light
• Warranty: 36 months (shell 6 months)
• 60 day return
