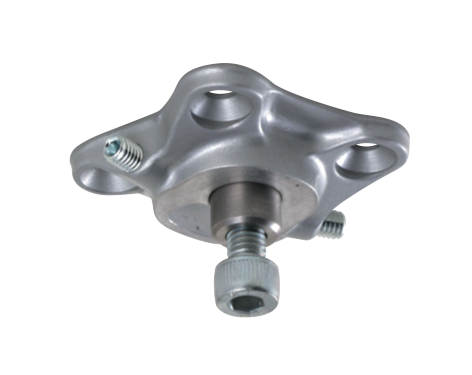

Aluminum Linking Plate
Aluminium Linking plate is convenient for assembly to the distal end of a transfemoral socket with Euro- pean 4-hole pattern
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Connection | Total Height | Build Height | Knee |
|---|---|---|---|---|---|---|---|---|
| 1K30 | Aluminum Linking plate is convenient for assembly to the distal end of a transfemoral socket with Euro- pean 4-hole pattern | 220lbs/100kgs | Aluminum | 80g | M8 | 21 mm | 13 mm |
