Pyramid Connectors
Provides the male pyramid connection.
Documents & Resources
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Connection | Total Height | Build Height | Knee |
|---|---|---|---|---|---|---|---|---|

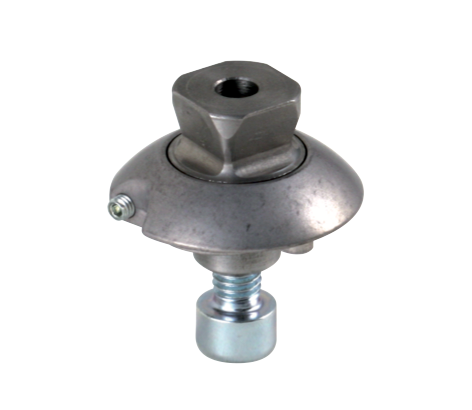

| 1K160 | Pyramid Connector provides the male pyramid connection. | 220lbs/100kgs | Aluminum + Stainless steel | 45g | M8 | 30 mm | 7 mm | 1M011 1M10 1M102 1M102V |

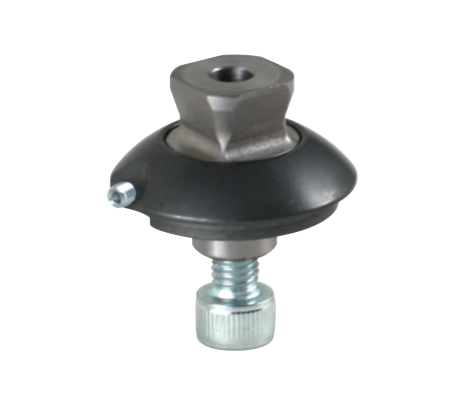

| 1K160-HD | Pyramid Connector for 125 kg knee provides the male pyramid connection. | 275 lbs / 125 kg | Aluminum + Stainless steel | 90 g | M8 | 30 mm | 8 mm | 1M01-P6 1M10-P6 1M102-P6 1M102V-P6 |

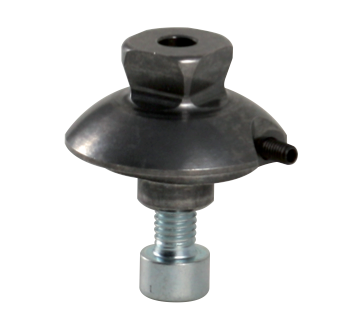

| 1K163 | Pyramid Connector provides the male pyramid connection. | 220 lbs / 100 kg | Stainless steel | 100 g | M8 | 30 mm | 8 mm | 1M01 1M10 1M102 1M102V |

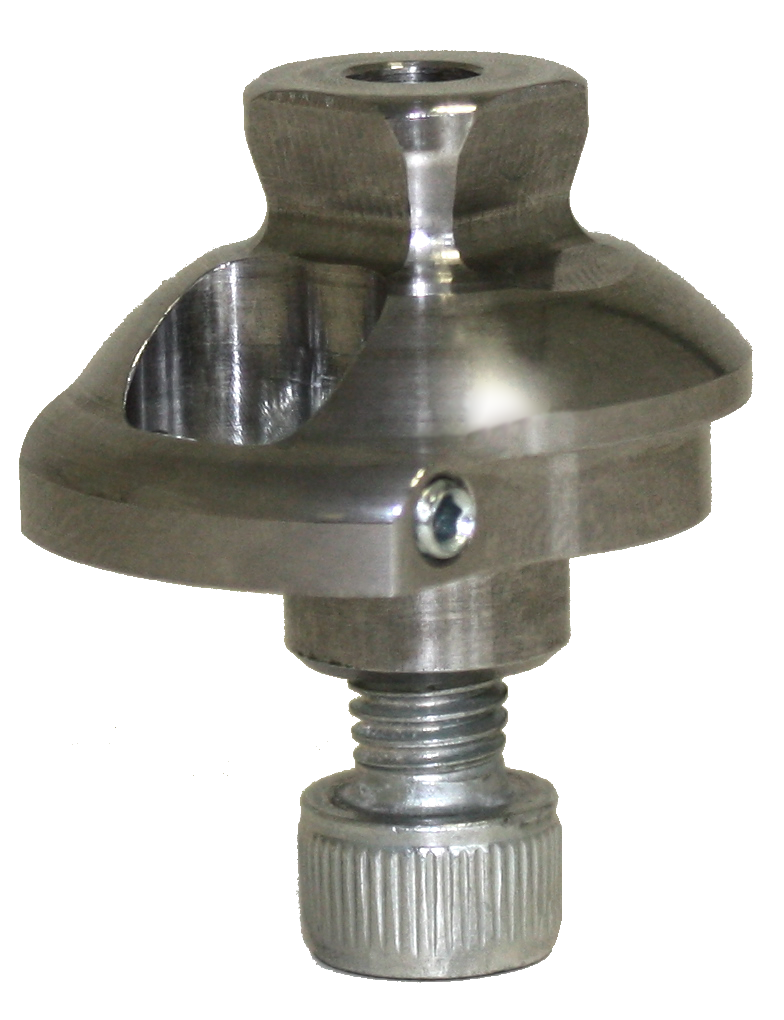

| 1K164 | Pediatric Pyramid Connector provides the male pyramid connection to the 1M112 knee | 99 lbs / 45 kg | Stainless steel | 120 g | M8 | 21 mm | 9 mm | 1M112 1M113 |
