Ultimate Flexibility

The Sierra® prosthetic foot incorporates a long carbon fiber spring to provide users a smooth gait over a broad spectrum of activities. The split toe design provides excellent inversion-eversion so that amputees can walk with confidence on uneven terrain. A full length heel enables foot flat early in the gait cycle, providing a compliant foot with a stable base of support. The result is a product that allows amputees to walk comfortably with confidence.

Water-resistant
Angle-top design increases the length of the carbon fiber spring, providing a smoother gait and ultimate flexibility
Split toe delivers excellent inversion-eversion
Full-length heel enables foot flat early in the gait cycle, providing a stable base of support and exceptionally smooth gait
Rated up to 365 lbs, 36-month warranty
Foot Shell sold separately. Order Here

Tech Specs

Item		Sierra®
Weight (27 Cat 4, module with foot shell)		640g
Build Height*	22 - 25cm	5.75” / 146mm
	26 - 28cm	6.75" / 172mm
	29 - 31cm	7.375” / 187mm
Heel Height		3/8” / 10mm

*Build height based on size 27cm Cat 4 foot module with foot shell and 10mm heel height. Sandal-toe available for sizes 22-28cm.

Module selection according to activity and weight
Weight/ Activity level	100-115lbs 44-52kg	116-130lbs 53-59kg	131-150lbs 60-68kg	151-170lbs 69-77kg	171-195lbs 78-88kg	196-220lbs 89-100kg	221-255lbs 101-116kg	256-285lbs 117-130kg	286-325lbs 131-147kg	326-365lbs 148-166kg
Low	1	1	2	3	4	5	6	7	8	9
Moderate	1	2	3	4	5	6	7	8	9	-
High	2	3	4	5	6	7	8	9	-	-

NOTE: Increasing category numbers indicate increased keel response.

Documents

Product Sheet

Instructions For Use

Ordering Guide - Modules and Foot Shells

L-Codes

L5981, L5986

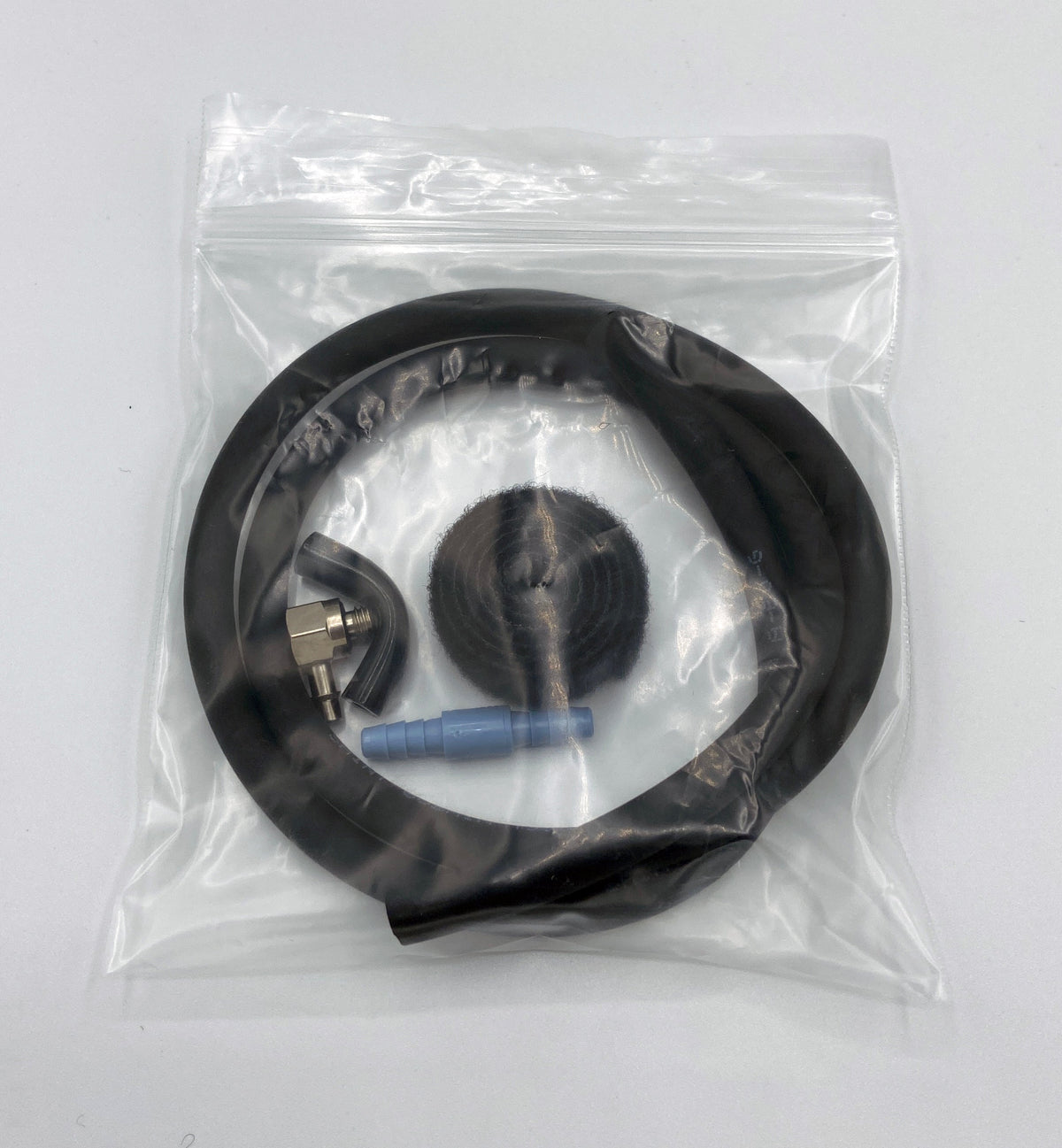

EVAQ8 Rebuild Kit
