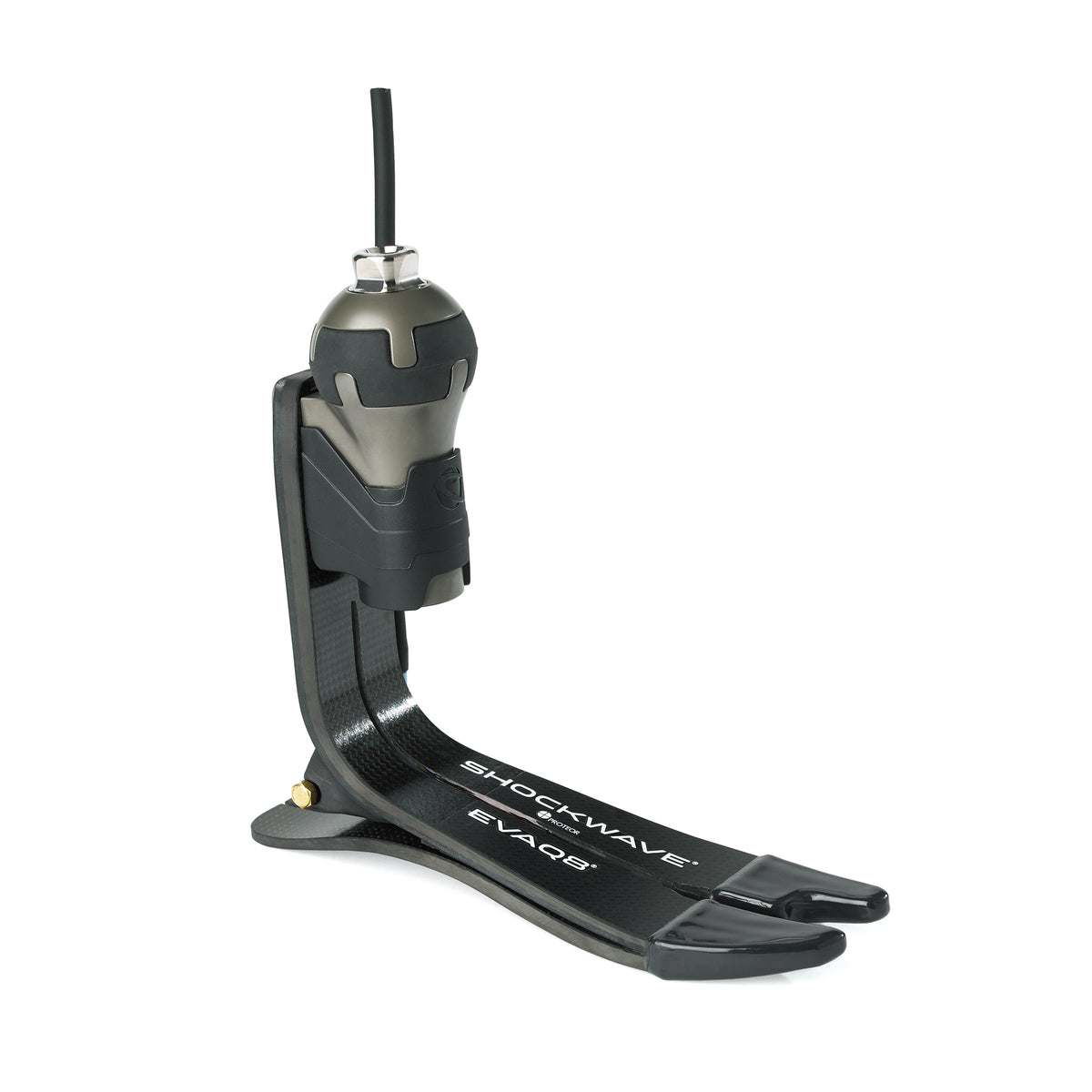

ShockWave EVAQ8

In its EVAQ8 version, the ShockWave™ provides even more comfort to the user with a minimal addition in weigth (40g), by adapting to residual limb volume changes and optimally securing the prosthesis to the residual limb. This maintains a high level of comfort and dynamism throughout the day.

• Excellent socket fit in a minimal design, with only 40g addition and no build height modification
• Automatic vacuum response at each step
• High Durability – Rubber vacuum chamber designed to last – even with continual use of time

Target User

The ShockWave™ is for active users (K3/K4) who enjoy sports activities like basketball, soccer or golf, as well as walking on any terrain in total comfort.

• +/- 15° axial rotation to smoothen every step and every turn
• Excellent shock absorption
• Excellent & quick energy return - with 90% efficiency at each step
• Excellent terrain adaptation - with more than 17° of inversion/eversion
• High agility and flexibility - with 17° of dorsi-plantar flexion
• Excellent socket fit in a minimal design (EVAQ8)
• Automatic vacuum response at each step (EVAQ8)

Product Information

• Recommended L-Code(s): L5987, L5984 - PDAC Verified (+L5781 in EVAQ8 version)
• Build height: 7,4" / 187mm (size 26, with foot shell, spectra sock and 10mm heel height)
• Maximum user weight: 325lbs / 147kg
• Product weight (EVAQ8): 2,24lbs / 1018g (size 26, cat 4, with foot shell & spectra sock)
• Sizes 23–30cm (Sandal toe option available - 23-28)
• Heel height: 3/8" / 10mm
• Attachment type: Male pyramid
• Foot shell skin tones: Jet Black, Dark, Medium, Light
• Warranty: 36 months (shell 6 months)
• 60 day return
