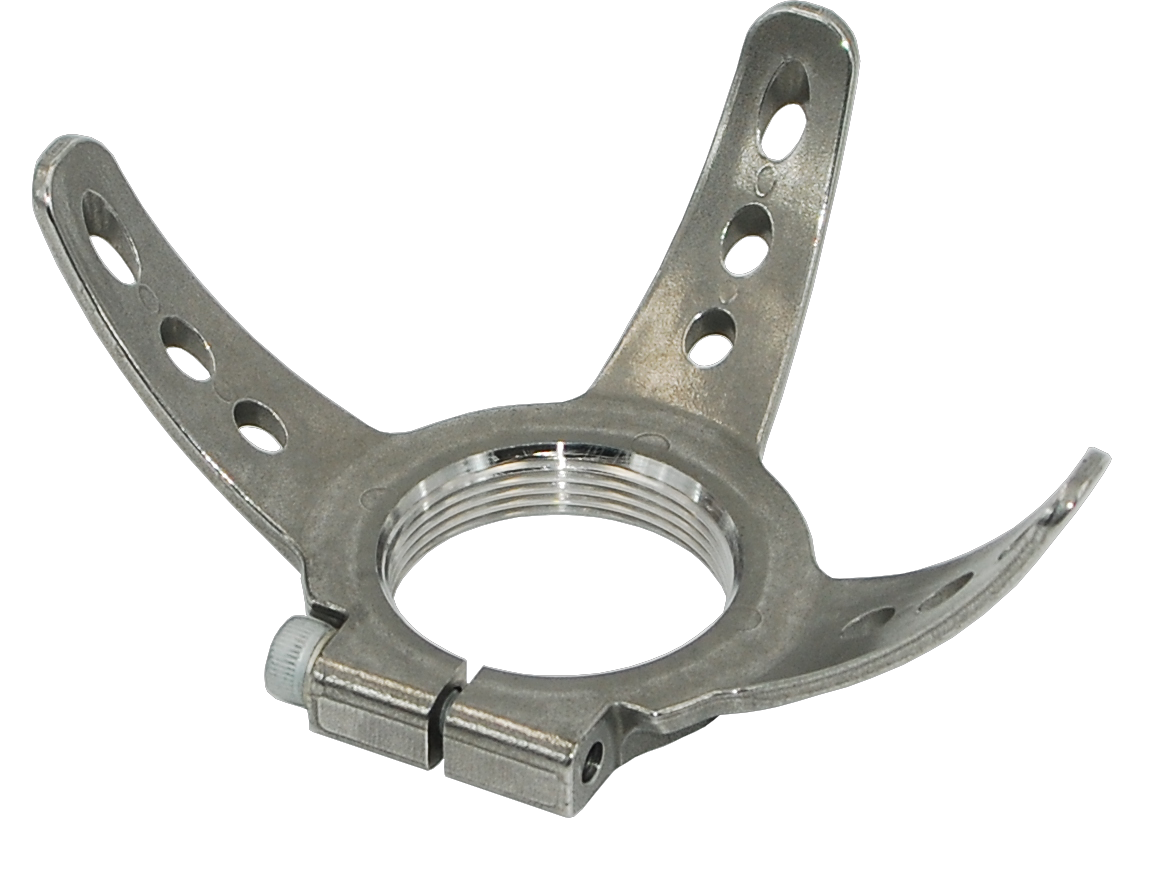

Three-Prong Lamination Connector
This M36 x 1,5 mm screw connection is appropriate for knees fitting long stumps and provides rotation adjustment. (ref. 1K179)
Documents & Resources
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Total Height | Build Height |
|---|---|---|---|---|---|---|
| 1K179 | Transfemoral Threaded base 3-Prong Lamination Adapter for Knee Disarticulation, delivered with a spacer. To use with M36 Threaded knees or Threaded inserts. | 330 lbs / 150 kg | Stainless steel | 125 g | 45 mm | 12 mm |
