Tube Clamp Adapter for Ø 30 mm Tube
Female 4-screw tube clamp adapter for Ø 30 mm tubes, available in titanium (1D40) or aluminum (1D41) and rated for patients up to 220 lbs / 100 kg.
Documents & Resources
Technical Specifications
| REF | Designation | Max Patient Weight | Material | Weight | Total Height | Build Height |
|---|---|---|---|---|---|---|

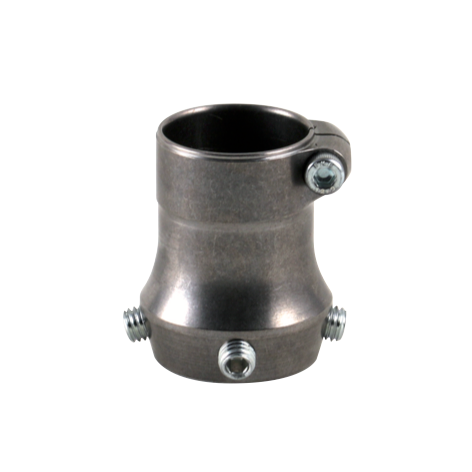

| 1D40 | Tube Clamp Adapter Female 4-screw adaptor for tightening on Ø 30 mm tube. | 220 lbs / 100 kg | Titanium | 90 g | 50 mm | 16 mm |

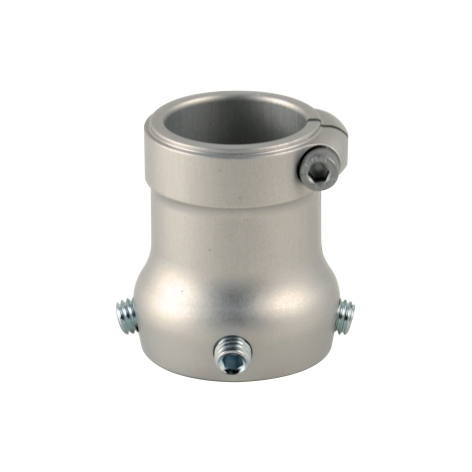

| 1D41 | Tube Clamp Adapter Female 4-screw adaptor for tightening on Ø 30 mm tube. | 220 lbs / 100 kg | Aluminum | 100 g | 47 mm | 13 mm |
