SYNSYS

Item Number: 1P700LEG


Purchasing Requirements:

  • Certifications are required before placing orders independently (for new patient trials and purchases)
  • Certification courses are provided by PROTEOR clinical and are free of charge
  • Patients must trial prior to purchasing


Please contact PROTEOR customer service, your local sales, or clinical representative to learn more





SYNSYS Microprocessor Full-Leg System

An Entirely New Angle


Only SYNSYS microprocessor full-leg system offers triple flexion movements, unlocking entirely new experiences for low to moderate K3 activity levels. From this angle, the future is inspiring.


AN ENTIRELY NEW ANGLE ON:

MOTION:

Only SYNSYS provides hip-knee-ankle triple flexion with 125° knee flexion and 42° ankle ROM to move freely like never imagined

Stability

92% greater flat-foot time on the ground for greater stability and 2X more toe clearance for greater safety†

LIFE

Greater confidence with more shoe options, longer battery life, and ease while walking


PROTEOR survey of 330 amputees, T1 2021.

†Requena, C et al. (2023, September 18). Increased of stability and security in transfemoral amputees with a knee-ankle synergistic system. Presented at ESMAC. Athens, Greece.



Technical Specifications
TECHNICAL SPECS
Knee Flexion 125°
Ankle ROM 42° (20° dorsiflexion / 22° plantarflexion)
Knee-to-ground Height 16.9” to 21.7” (430 to 550mm)
Max Patient Weight 275lbs (125kg)
Product Weight 7.1lbs (3.2kg)
Activity Level Low to moderate K3
Foot Sizes 23cm to 30cm

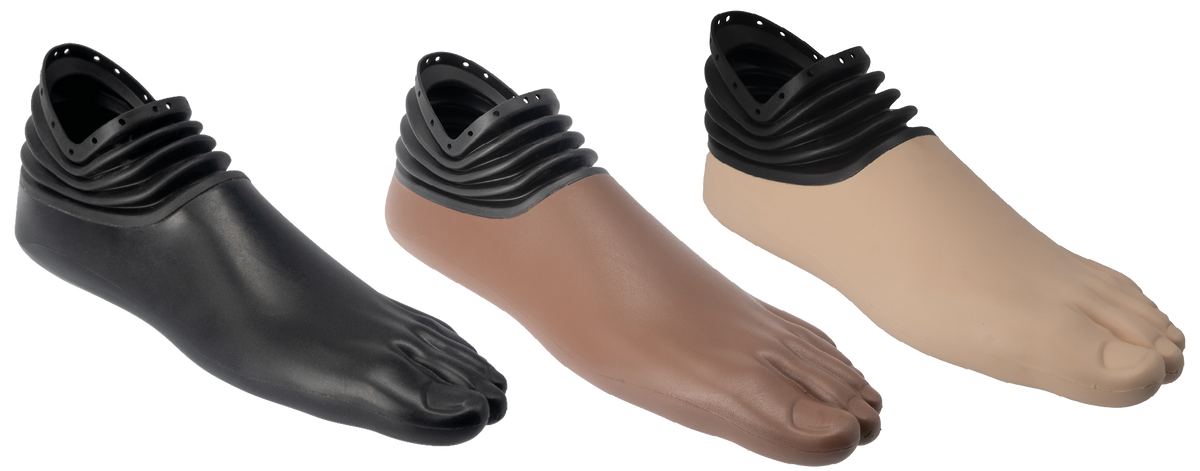

Foot Shell Colors Light, Medium, Black
Battery
>10 days depending on activity. Complete recharge time of 6 hours
Warranty and Servicing 36 months with service at 24 months
Extended Warranty and Servicing +36 months with service at 48 months
Proximal Connector Pyramid
CP Programming iPad Pro 12.9” (5th generation), Windows 10 and 11
Patient App iOS and Android

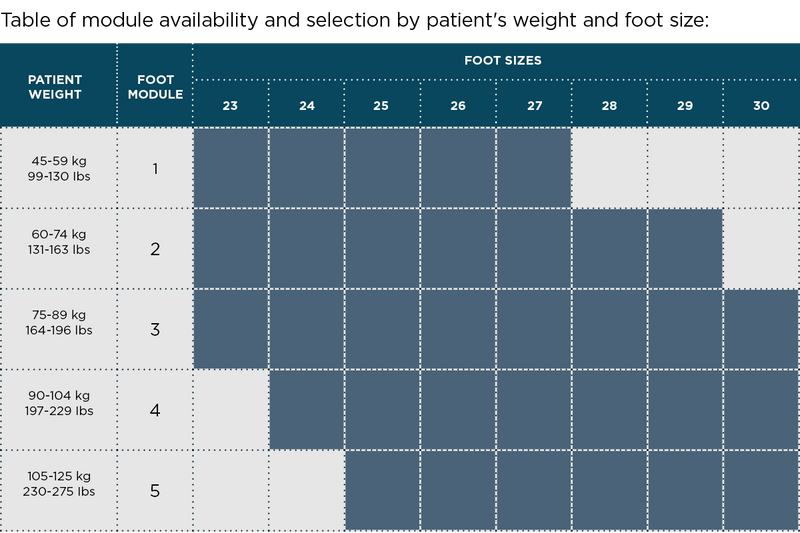

Activity Level

45-59kg
99-130lbs

60-75kg
131-163lbs

75-89kg
164-196lbs

90-104kg
197-229lbs

105-125kg
230-275lbs

Normal

1

2

3

4

5

High

2

3

4

5

-

Documents

Product Sheet

Clinical Summary

PDAC Verification Letter

CP IFU

Patient IFU

L-Codes
  • L5828
  • L585
  • L5854
  • L5848
  • L5973
  • L5850
  • L5925
