Log in to view pricing
Already completed your SYNSYS Trial? Proceed to SYNSYS Order →

SYNSYS Trial Ordering Information

Ordering Information

Certification is required before placing orders (for new patient trials and purchases).

Certification courses are provided by the PROTEOR Clinical team and are free of charge.

Patients are required to trial prior to purchasing.

Certified Clinicians / SYNSYS order for Completed Trial

To place a new SYNSYS order (Direct customers), please use the SYNSYS ordering page or the link below.

If you need to request a height adjustment or foot rotation fill out this form:

SYNSYS Multi-form

For Hanger Clinics, please place your order via the Hanger Store.

SYNSYS Trial / Certified

If you have received SYNSYS certification and currently have a patient who would like to trial SYNSYS, please fill in this page or submit this form and our PROTEOR Field CP will respond with more information:

SYNSYS Multi-form

SYNSYS Trial / NOT Certified

If you have not received certification, please fill in this page or submit this form and our PROTEOR Field CP will respond with more information:

SYNSYS Inquiry Form

SYNSYS Trial Form * Required — Complete before adding to cart

Trial & Certification

Patient & Foot Configuration

Current Prosthesis

SYNSYS Measurements

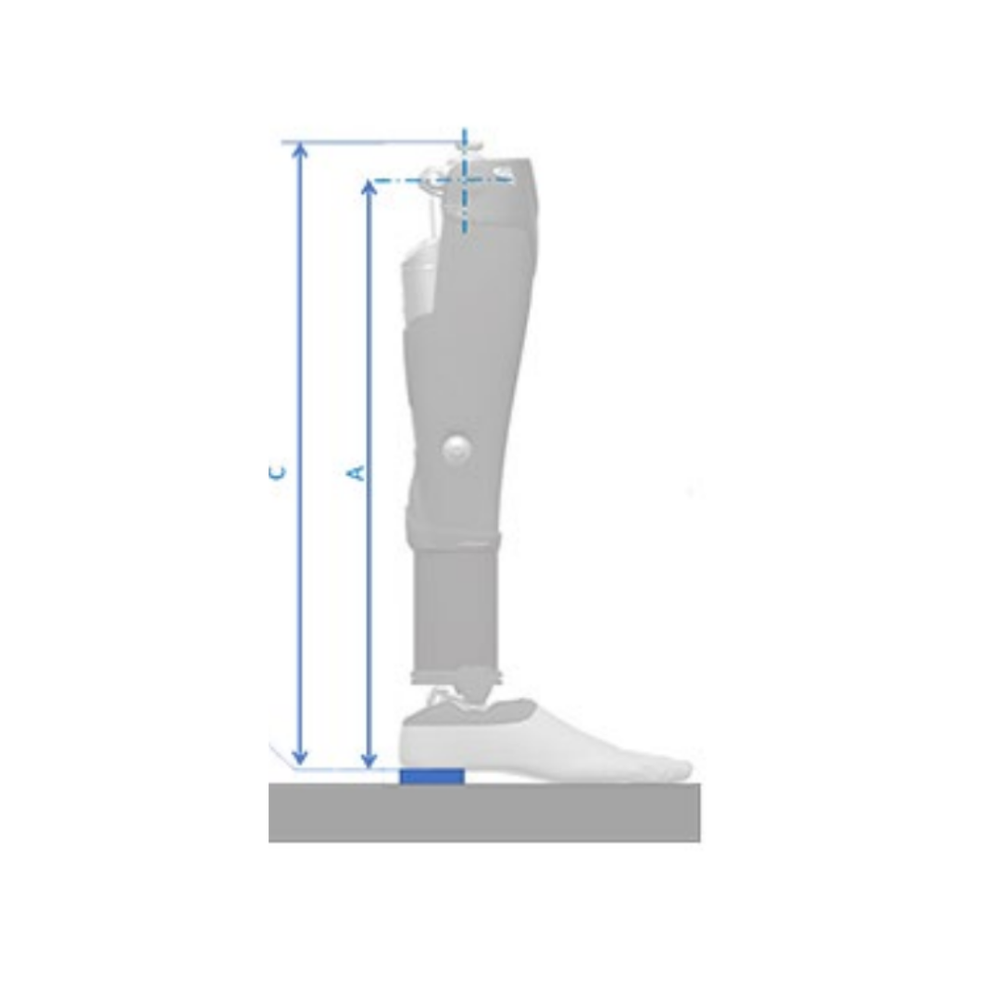

Two measurements (in mm) are required to determine proper build height for SYNSYS, A and C below. Measurement A is knee center to floor and Measurement C is top of pyramid to floor without a shoe.

Please round down to the nearest available measurement on the list.

Please note that pictures will not be accepted, measurement values are required.

SYNSYS measurement diagram
Log in to order

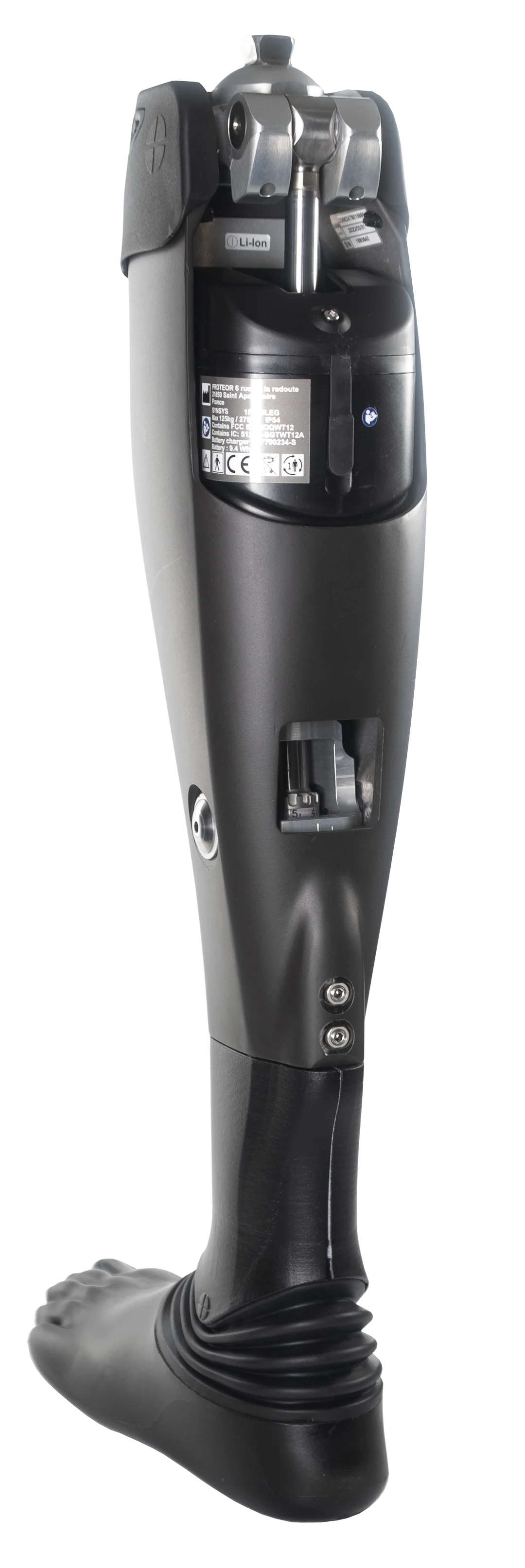

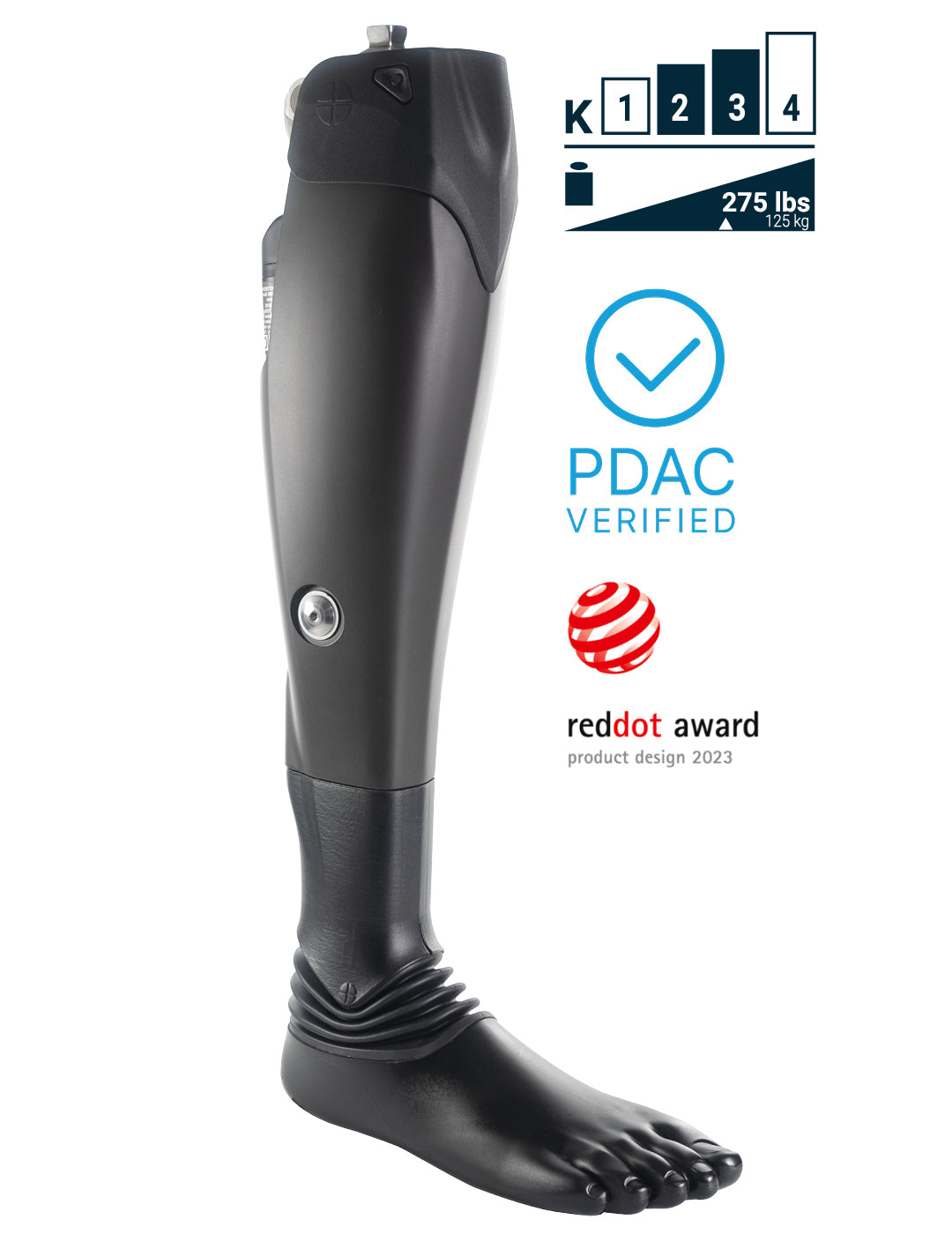

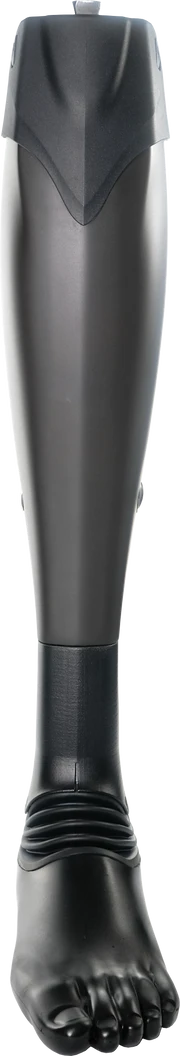

Only the SYNSYS Microprocessor Full-Leg System offers triple flexion movements, unlocking an entirely new angle on performance for K2 and low to moderate impact K3 ambulators.

AN ENTIRELY NEW ANGLE

Motion: Only SYNSYS provides hip-knee-ankle triple flexion with 125° knee flexion and 42° ankle ROM to move freely like never imagined.

Stability: 92% greater flat-foot time for greater stability and 2x more toe clearance for optimal security*. Intuitively walk downstairs with the full foot flat on the step; and rely on its unique stumble recovery assistance*.

Toe Clearance: Active dorsiflexion during swing.
Life: Up to 9 shoe options plus barefoot walking, 10+ days of battery life, and 13 protective cover colors to choose from.

*Requena, C et al. (2023, September 18). Increased of stability and security in transfemoral amputees with a knee-ankle synergistic system. Presented at ESMAC. Athens, Greece.

For more information about SYNSYS, please visit proteorsynsys.com and contact your PROTEOR Sales Representative or Field CP.



Technical Specifications

Item N°
1P700LEG
Proximal Connector
Pyramid
Weight
3220 g / 7.1 lbs
Knee-to-ground Height
16.9” to 21.7” / 430 to 550 mm
Knee Flexion
125°
Ankle ROM
42° (20° dorsiflexion / 22° plantarflexion)
Max Patient Weight
275 lbs / 125 kg
Activity Level
K2 and low to moderate impact K3
Battery Life
>10 days depending on activity. Complete recharge time of 6 hours
CP Programming
iPad Pro 12.9” (5th generation), Windows 10 and 11
Patient App
iOS and Android
Water Resistance
IP54

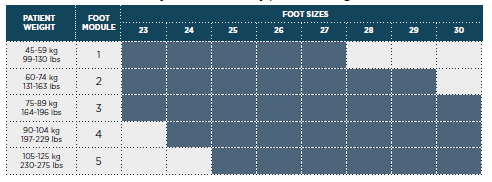

Foot Sizes
23 cm to 30 cm

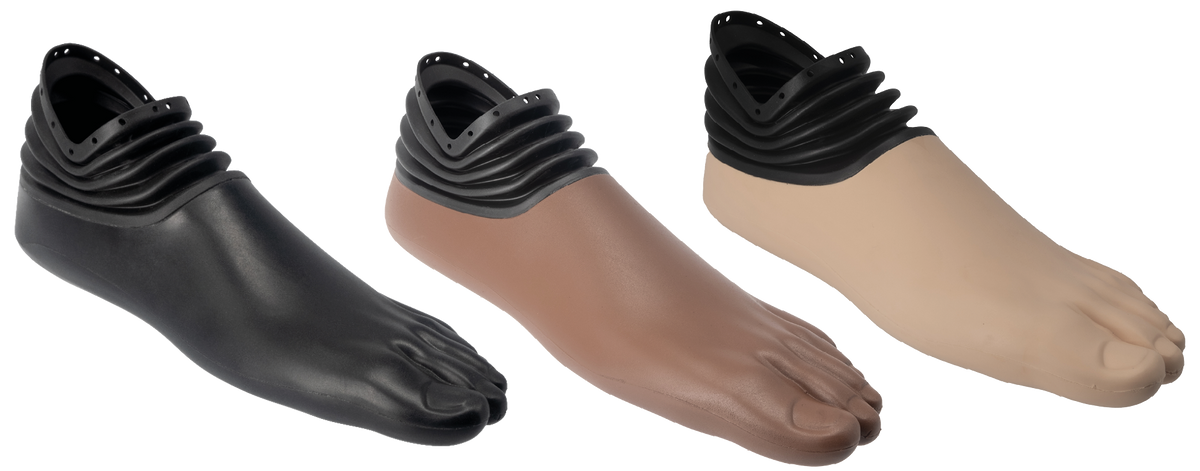

Foot Shell Colors
Light, Medium, Black
Not suitable for bilateral transfemoral.
